H9 Swing Door Opener-byekey automaticon

Product Introduction

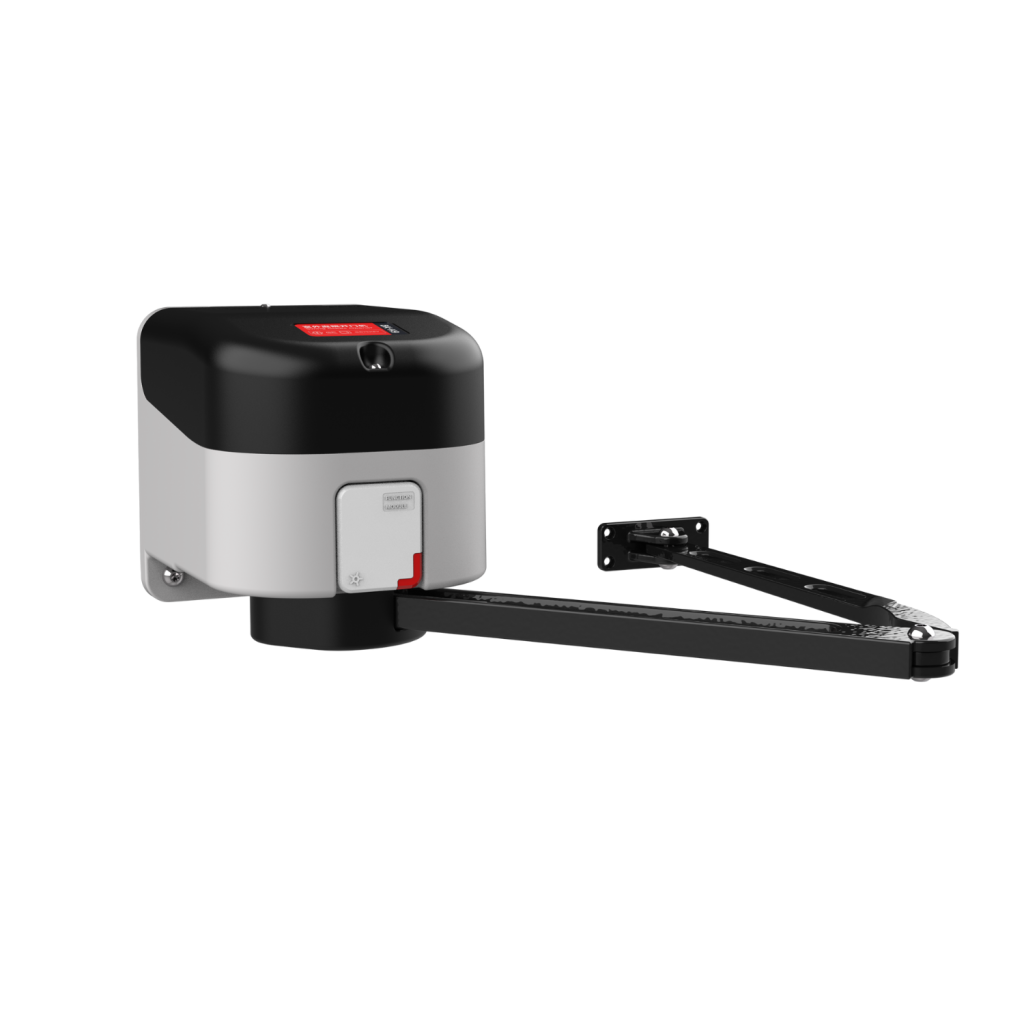

BK-H9 side mounted heavy-duty door opener is a product designed for various types of doorways, villa doors, industrial doors, and wind resistant scenarios. It features an all aluminum body and is rust free for life; Alloy steel support arm+high-temperature spraying treatment technology, using high-speed DC brushless helical motor, perfectly combining silence and strength, more durable, multi-threaded controller control, making door opening and closing smoother in various scenarios; Comes with multiple interface functions, allowing various functions and auxiliary devices to be perfectly connected.

Product Features:

High structural strength, specifically designed for heavy-duty doors;
Unique self-locking support arm structure, solves the problem of gear breakage in worm gear and electronic brake structure, and solves the door closing self-locking problem through external mechanical structure.
Bluetooth debugging, simple and fast, can quickly adjust controller parameters through the mobile Bluetooth mini program, avoiding the risk of compression during device debugging;
Red and green indicator lights provide safer passage. The high brightness LED dual color indicator light displays a red light when the door is closed and a green light when the door is opened, making passage safer.

Usage scenario:

The width of the door is large, and if the door exceeds 2 meters, due to the inertia of the door switch, it will put a lot of pressure on the body structure and gears. Small door openers may not be able to stop, and even gear teeth may break.
The weight of the door body is large, exceeding 100kg, and the inertia is too high, which can also lead to the above situation;
If the height of the door exceeds 1.5 meters but is less than 2.5 meters, it may also occur due to high inertia;
Outdoor iron doors or outdoor wooden doors use iron hinges or directly embed the door shaft into the ground. In scenarios where the friction force of the door opening and closing is very high, the initial force of the door opener needs to be very large. Using a small door opener can cause situations where the door cannot be opened or closed in low-temperature environments.
High aesthetic requirements, small devices installed on the side appear to lack grade. H9 adopts wide aluminum castings and circular arc design, which is more high-end and atmospheric;
There are requirements for traffic light warning reminders, and H9 adopts a dedicated LED light board to highlight the door body and door opener switch status.

Product electrical parameters:

Input voltage: 220V ± 10%, 50HZ	Power supply: 160W;
Motor voltage: 24V;	Rated power of motor: 60W;
Static power of the device: ≈ 1W;	Motor speed: 1800RPM;
Reduction ratio: 210/1;	Output torque: 78N · m;
Longitudinal kilogram force: 7.73KG · m;	Remote control frequency: 430MHz;
Bluetooth specification: BLE low-power Bluetooth;	Electric lock port output current: 1.2A [supports 2 280KG magnetic locks];
Working temperature: -35 ℃ -85 ℃;	Access control port output current: 0.8A [Face recognition device requires separate power supply];
Operating humidity: 30% to 80% (no condensation);	Remote control distance: ≈ 15M [interference free state];
Door opening and closing speed: adjustable from 3-6S;	Traffic light voltage: 12V [positive];
Waterproof rating: IPX4, waterproof and splash proof;

Product Specifications

Specification parameters: 215 × 161 × 180mm;	Arm size: 350mm;
Axis distance from wall dimension: 145mm;	Outer dimension of shaft distance: 70mm;
Expansion screw hole spacing: 147 × 125mm;	Door leaf base size: 70 × 20mm;
Outer packaging size: 468 × 2746 × 247mm;	Total weight of the product: ± 8.5KG;
