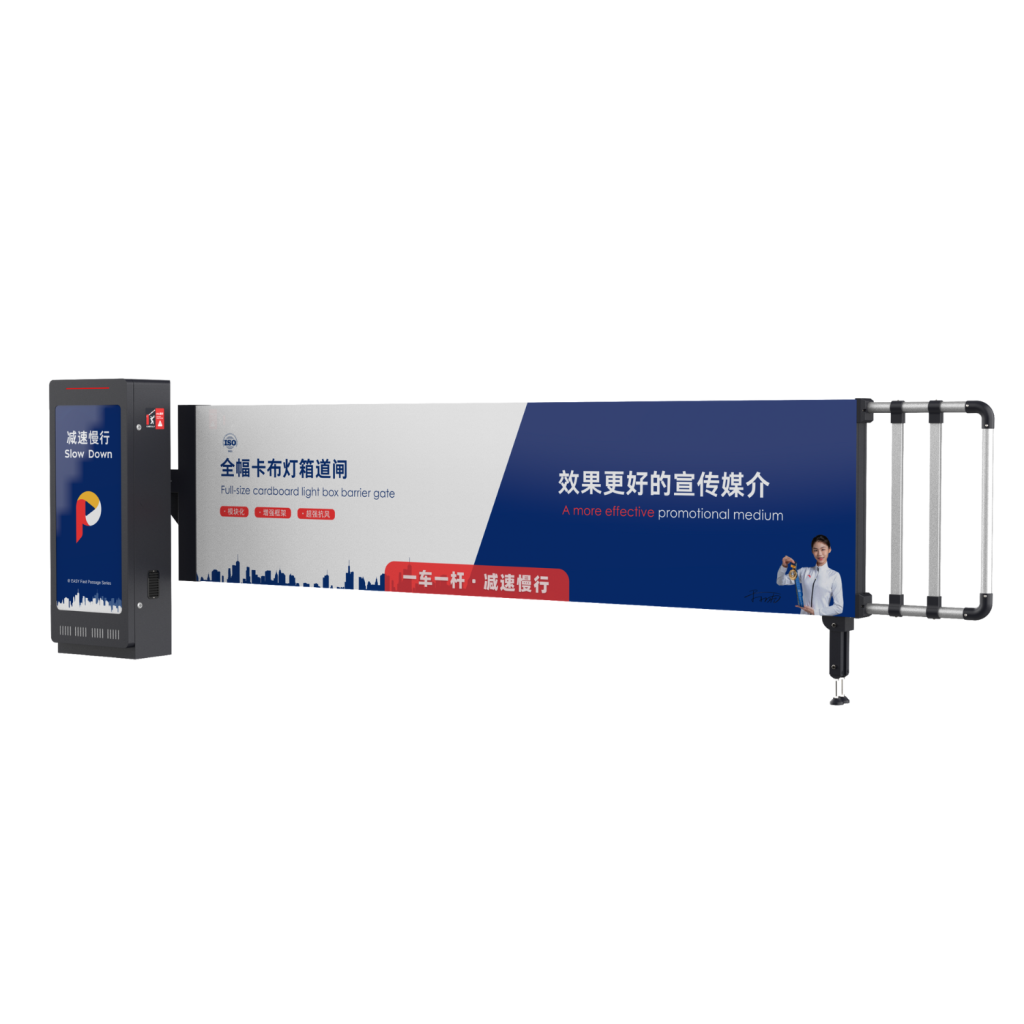

The E6 Kabu lightbox advertising gate is designed to solve the problems of high equipment installation costs, long advertising image pasting time, and poor nighttime display effects in media companies. Adopting a 750mm high advertising screen and a 3000mm wide screen, with a retractable pull rod design that can be extended up to a total width of 4.5 meters, it solves the problem of various door width differences.
Product Features:
- Super strong wind resistance performance, using 100mm wide pole clamps and 90mm wide profiles, with built-in L-shaped structure design, better wind resistance performance;
- 3000mm × 750mm Kabu screen, better display effect;
- Fearless of harsh weather, equipped with a built-in low-voltage 24V waterproof light strip. In case of extreme storm weather, the advertisement can be quickly removed, and the gate operates normally to meet outdoor use needs.
- Safety protection keeps away from risks, with DC24V safe voltage. If the gate encounters resistance during pole dropping, it will automatically control the movement to lift the pole to prevent smashing and avoid unnecessary disputes.
- Comprehensive innovation bidding farewell to tedious and inefficient, UV soft film Kabu advertising screen, double-sided card slot design, lightweight, easy to replace screen.
- Wide applicability of freely adjustable length, 0~1000mm adjustment range, no cutting adaptation, different road widths, elastic buffering support feet to reduce the impact force on the movement and improve the stability of product operation.
Specification parameter table:
| Electrical parameters： | |
| Motor type: DC brushless motor [4-pole pair] | Rated power of motor: 250W |
| Motor speed: 3S | Motor reduction ratio: 1:150 |
| Motor voltage: 24V DC | Power supply: 360W |
| Static power of motor: 2W | Input voltage: 110V, 220V |
| Protection level: IP20 (GB4942.1) | Service life: ≥ 1 million cycles |
| Motor torque: 162N · M | Remote control frequency: 430mHZ |
| Traffic light voltage: 12V; | Working temperature: -35 ℃ -85 ℃; |
| Working humidity: 30% to 80% | Waterproof rating: IPX4, waterproof and splash proof |
| Specifications: | |

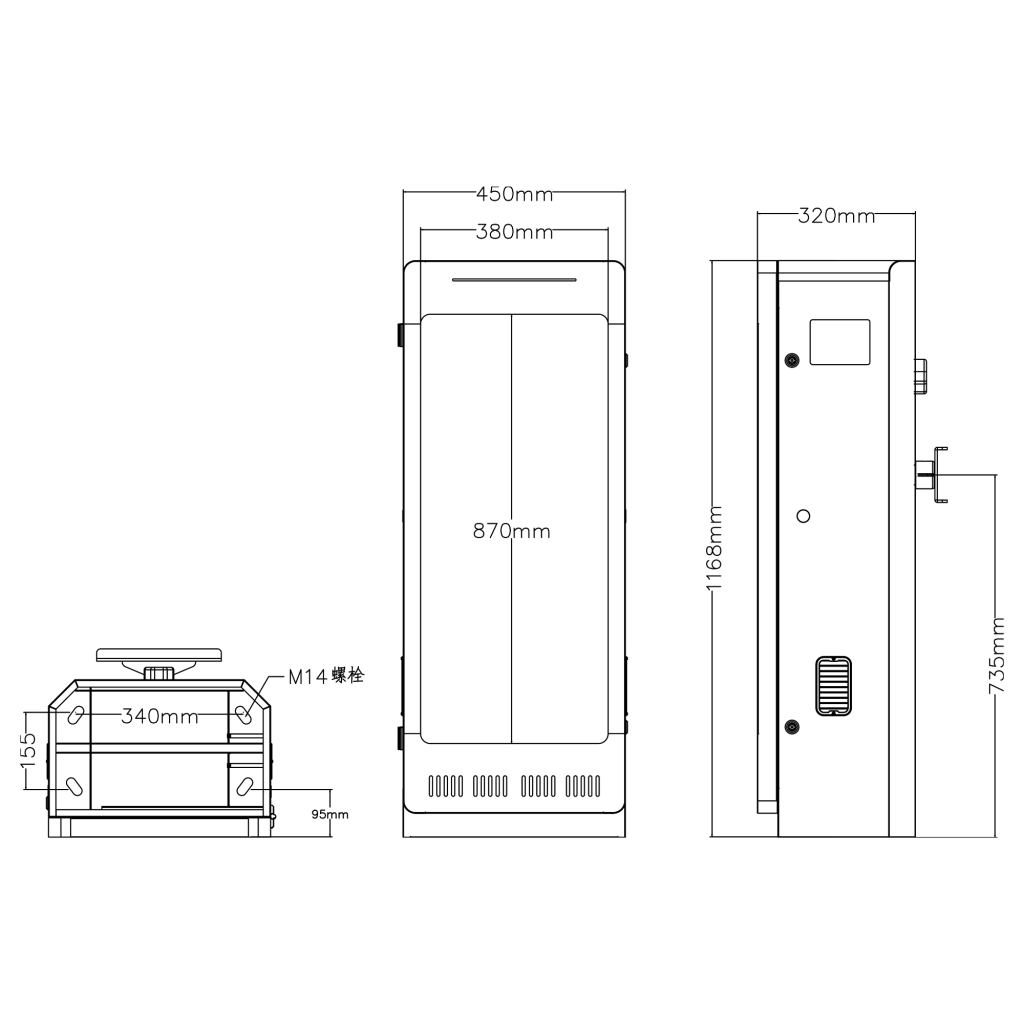

| Product dimensions: 1168×450×320mm | Product packaging size: 1216mm×530mm×475mm |
| Glass screen size：380mm×870mm | Kabu screen size：3000mm×750mm |
| Axis height：735mm | Gate type: 100 type advertising barrier gate |
| Product weight： ±68KG | Maximum pole length： 4.5M |
| Packing list: Accessories package: 2 remote controls; One door key; M15 × 150mm × 4 pieces; 1 rod clamp+lining, 1 pressure plate | |
