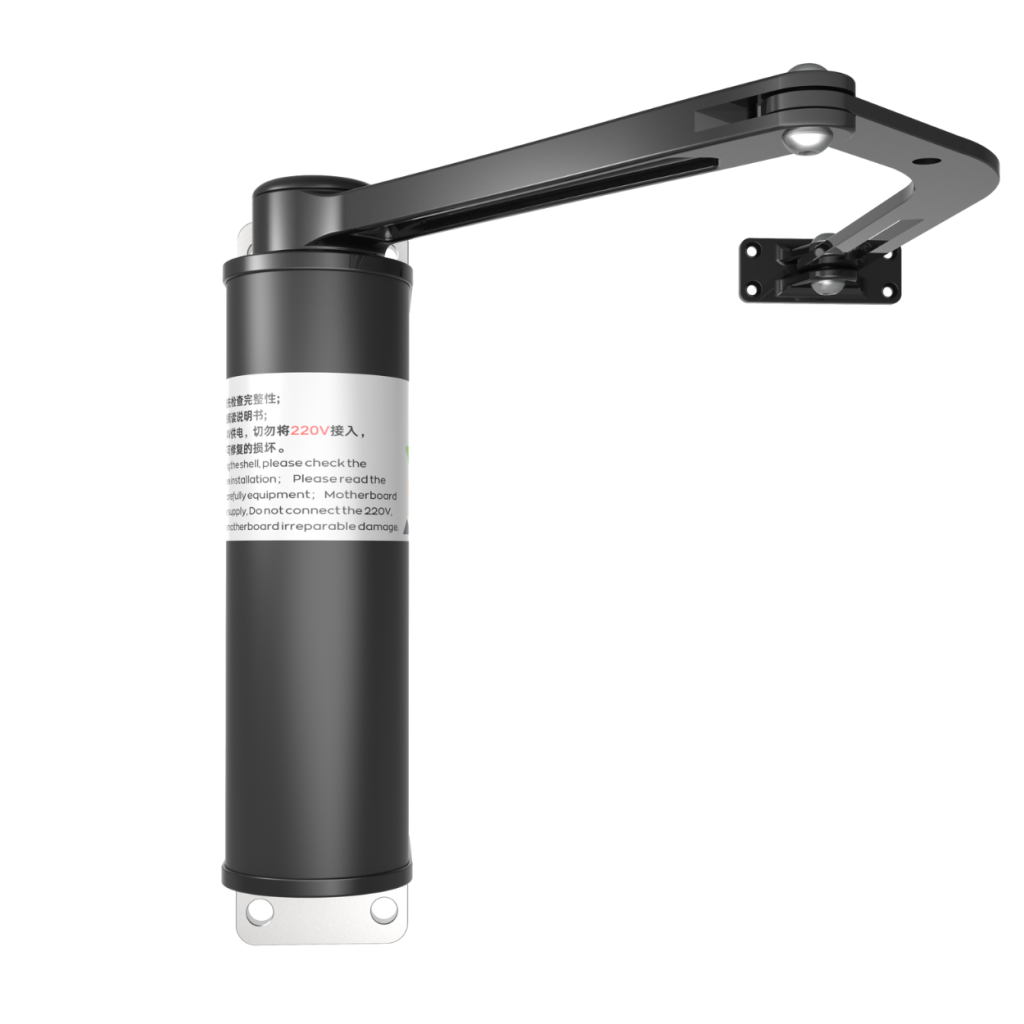

H3 Swing Door Opener

Product Introduction：

BK-H3 side mounted door opener is a swing door product with side columns for various indoor doors, fire doors, fire doors, wooden doors, iron doors, aluminum alloy doors, etc. It adopts an all aluminum body and will not rust for life; Alloy steel support arm+high-temperature spraying treatment technology, using high-speed DC brushless helical motor, perfectly combining silence and strength, more durable, multi-threaded controller control, making door opening and closing smoother in various scenarios; Comes with multiple interface functions, allowing various functions and auxiliary devices to be perfectly connected.

Product Features:

1. High structural strength, specifically designed for heavy-duty doors;
2. Unique self-locking support arm structure, solves the problem of gear breakage in worm gear and electronic brake structure, and solves the door closing self-locking problem through external mechanical structure.
3. Bluetooth debugging, simple and fast, can quickly adjust controller parameters through the mobile Bluetooth mini program, avoiding the risk of compression during device debugging;
4. Red and green indicator lights provide safer passage. The high brightness LED dual color indicator light displays a red light when the door is closed and a green light when the door is opened, making passage safer.

Usage scenario:

There are requirements for traffic light warning reminders, and H9 adopts a dedicated LED light board to highlight the door body and door opener switch status.

The width of the door is large, and if the door exceeds 2 meters, due to the inertia of the door switch, it will put a lot of pressure on the body structure and gears. Small door openers may not be able to stop, and even gear teeth may break.

The weight of the door body is large, exceeding 100kg, and the inertia is too high, which can also lead to the above situation;

If the height of the door exceeds 1.5 meters but is less than 2.5 meters, it may also occur due to high inertia;

Outdoor iron doors or outdoor wooden doors use iron hinges or directly embed the door shaft into the ground. In scenarios where the friction force of the door opening and closing is very high, the initial force of the door opener needs to be very large. Using a small door opener can cause situations where the door cannot be opened or closed in low-temperature environments.

High aesthetic requirements, small devices installed on the side appear to lack grade. H9 adopts wide aluminum castings and circular arc design, which is more high-end and atmospheric;

Input voltage: 24V	Power supply: 45W;
Control interface: COM/NO dry contact	Remote control frequency: 430MHz;
Static power of the device: ≈ 1W;	Motor speed: 1800RPM;
Reduction ratio: 1:200	Output torque: 78N · m;
Motor shaft diameter: 26mm	Motor type: DC brushless motor
Bluetooth specification: BLE low-power Bluetooth;	Electric lock port output current: 1.2A [supports 2 280KG magnetic locks];
Working temperature: -35 ℃ -85 ℃;	Access control port output current: 0.8A [Face recognition device requires separate power supply];
Operating humidity: 30% to 80% (no condensation);	Remote control distance: ≈ 15M [interference free state];
Door opening and closing speed: adjustable from 3-6S;	Durability: 1 million times+;
Waterproof rating: IPX4, waterproof and splash proof;

Product Specifications

Shell material: Aluminum alloy
Shell thickness: 1.5-1.8mm
Base plate material: aluminum alloy
Chassis specifications: 350 × 83 × 12mm;
Body thickness: 133mm;
Arm material: cast iron;
Sealing material: reinforced polypropylene;
Main arm length: 295mm;
Arm length: 275mm;
Arm base: 72 × 38 × 8mm
Maximum extension: ≤ 480mm;
Expansion wire specification: ≤ 12mm;
Weight with door: Maximum 250KG
Door width: maximum 1.8 meters
Packing method: carton+foam
Packaging material: 5-layer high-strength corrugated E
Packaging specifications: 390 × 300 × 100mm
Noise standard: ＜ 55dB
Protection level: IP55
Working temperature: -38-85 ℃
Production standard: GB4943.1-2001
Overall weight: ≈ 8.6KG

Accessories List:

Door body of door opener: 1 set;	Arm bag: 1 set;
Screw package: 1 set;	Warranty card: 1 card;
Instruction manual: 1 copy;	Remote control: 2 pieces;

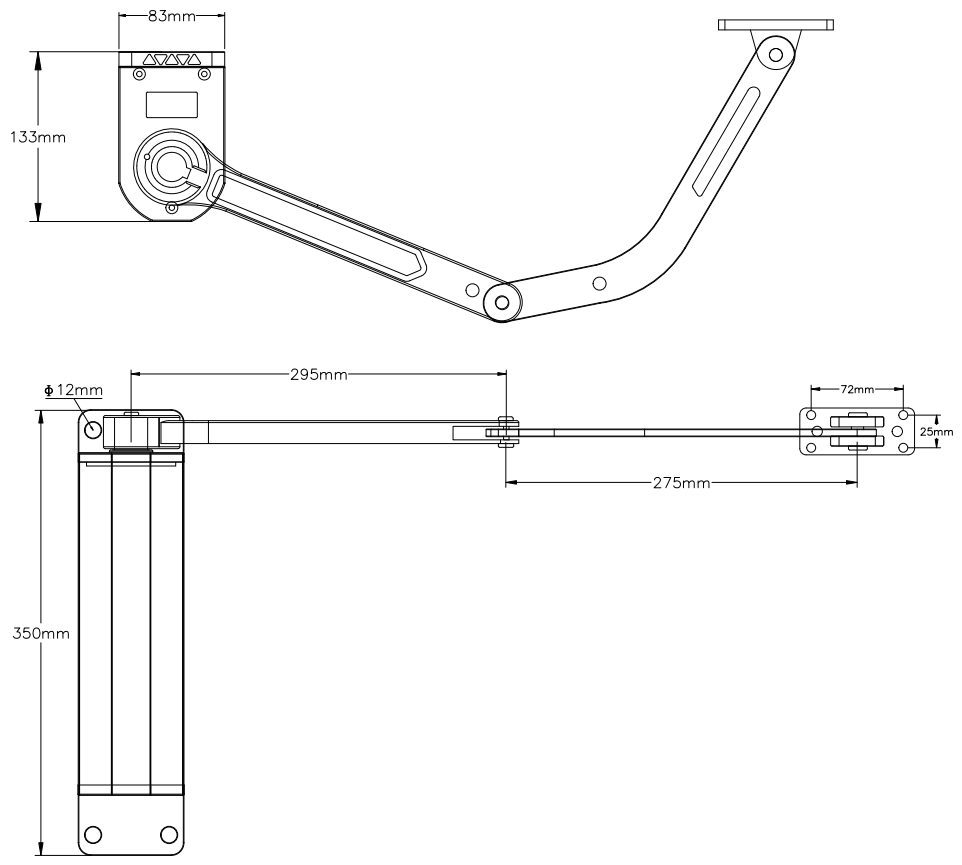

Product appearance dimension diagram:

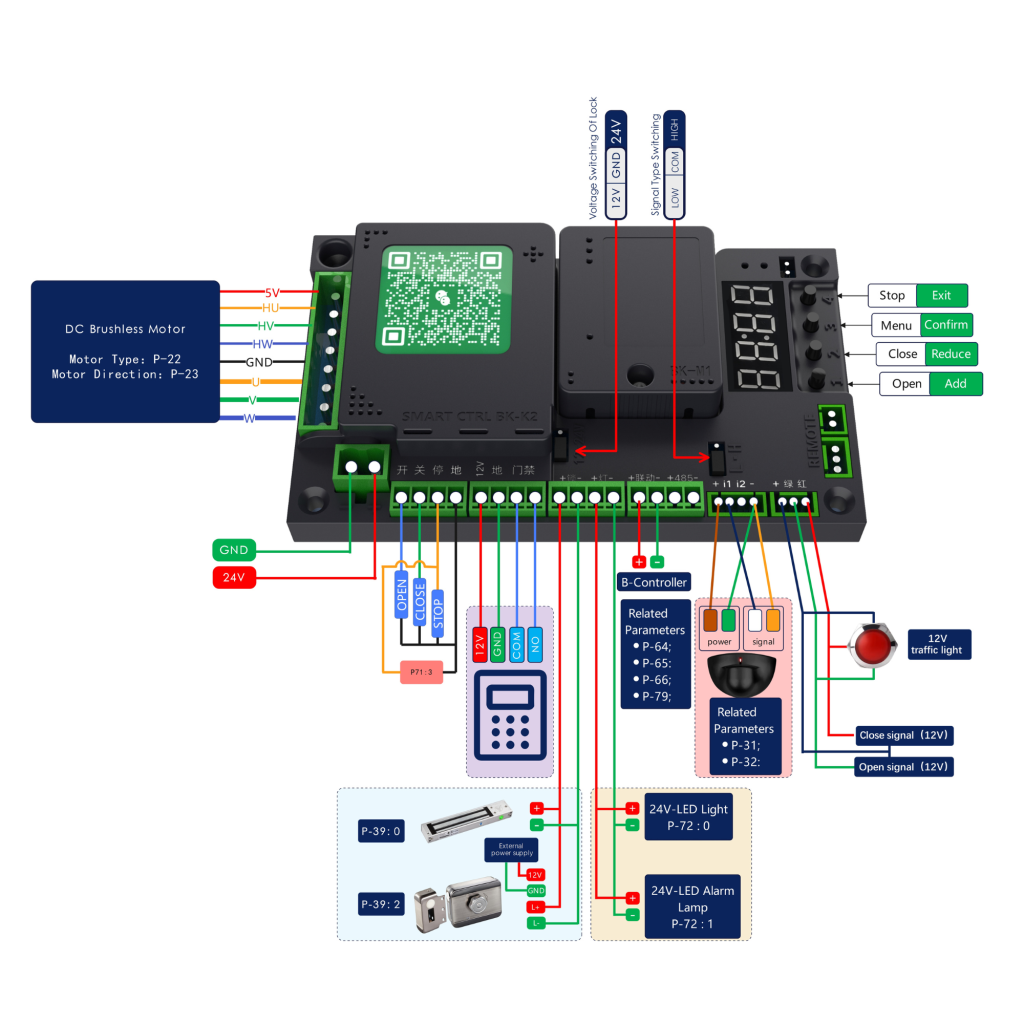

Controller wiring and port definition diagram:

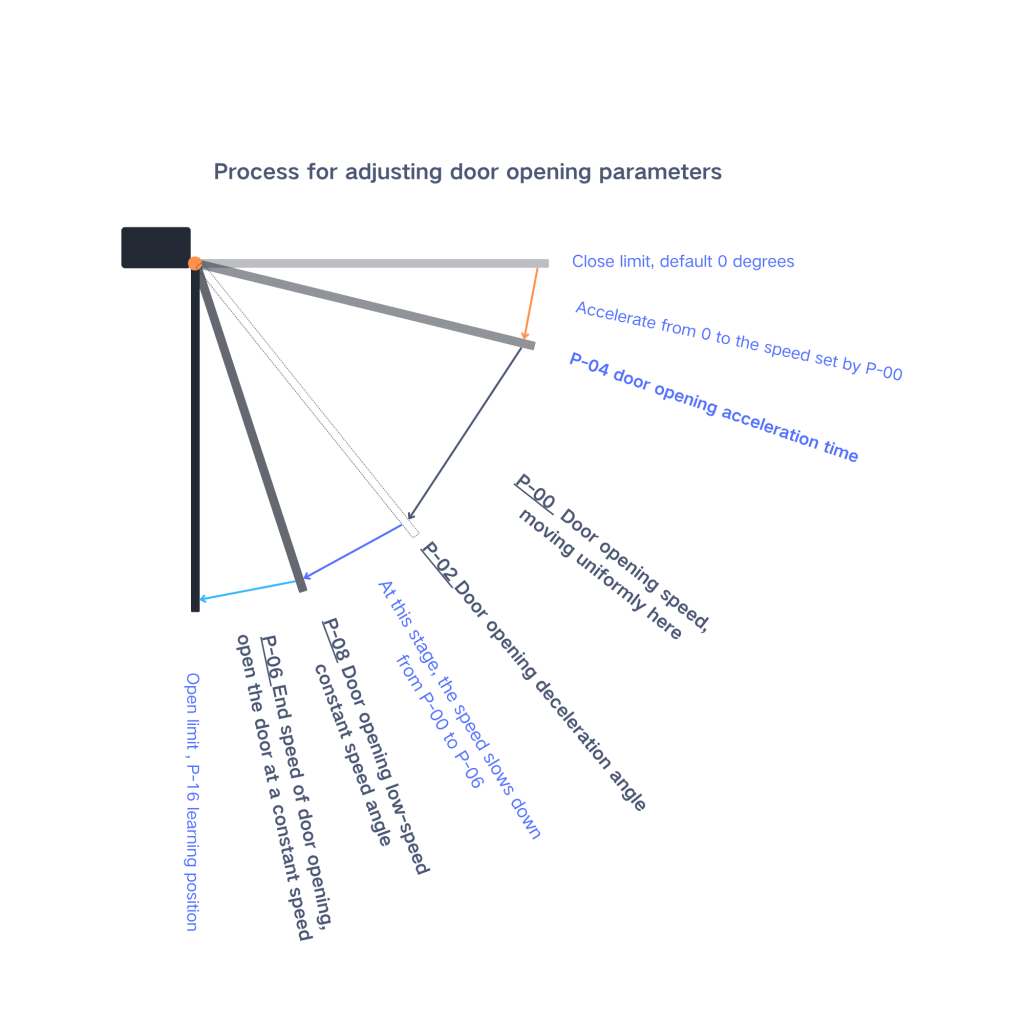

Process for adjusting door opening parameters:

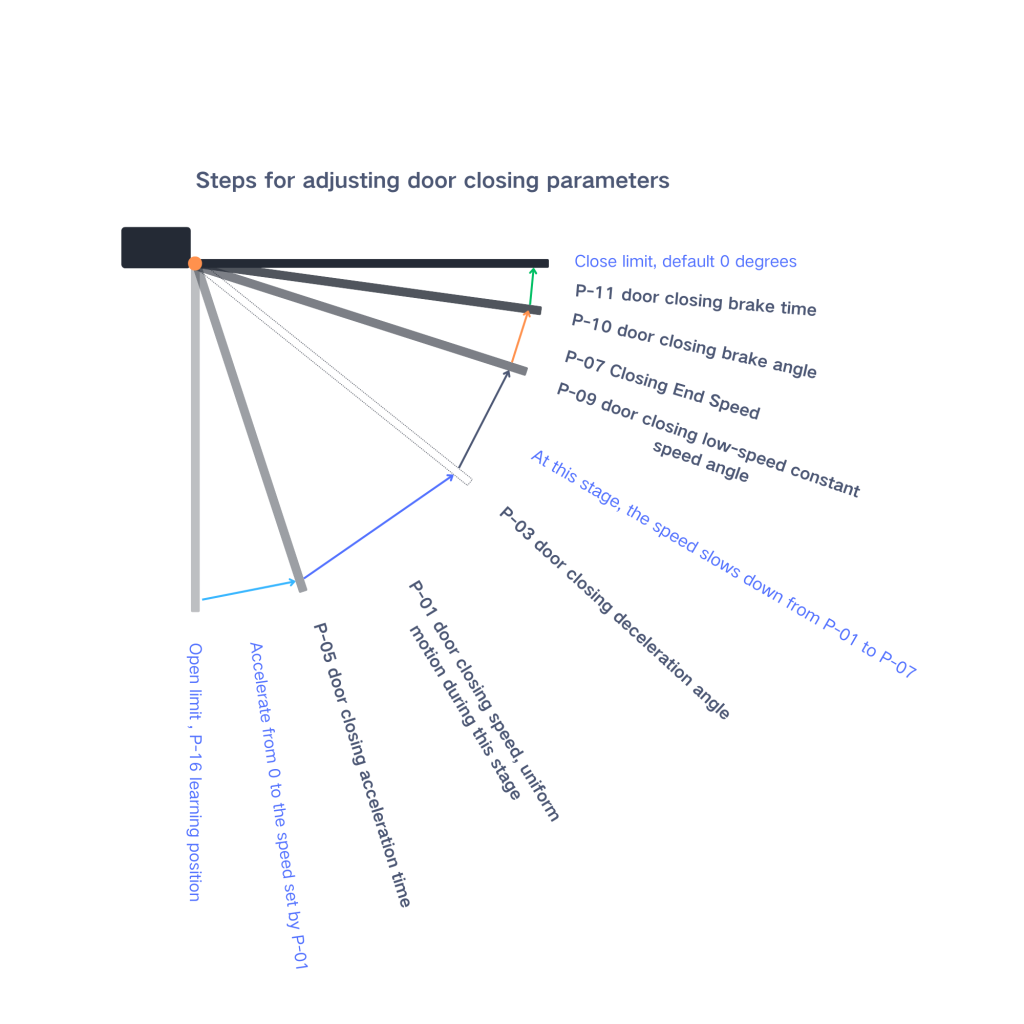

Process for adjusting door closing parameters:

Controller screen information display instructions:

content	meaning
IDLE	Motor not connected, or motor Hall fault, possible cause is loose wiring
STOP	The electric door is closed in place
CLOS	The electric door is closing
OPEN	The electric door is opening
HOLD	The electric door is fully open
LOCK	Electric door locked
FLET	Normally Open Mode

Controller screen error code:

error code	Reason for error
Err0	When clearing the remote control and restoring factory settings, it is necessary to set the correct confirmation value. If the confirmation value is incorrect, an Err0 error will be prompted.
Err1	retain.
Err2	The warning of high brake recoil voltage can be solved by reducing the operating speed.
Err3	Opening the door may cause blockage, possibly due to slow opening speed or slow closing speed. You can increase the speed of opening and closing the door.
Err4	Closing the door may cause blockage, possibly due to insufficient closing speed or closing end speed. You can increase the closing speed or the closing end speed.
Err5	Open door timeout, the reason is that the opening time exceeds P-49. Can increase the opening speed and closing speed of the door.
Err6	Closing the door exceeded the time limit, as the closing time exceeded P-49. Can increase the closing speed and closing end speed.
Err7	The motor type selection is incorrect, it can be changed to the correct type through P-22.

Controller shortcut function:

After the door is fully opened, press and hold the remote control “stop” for 5 seconds to enter the normally open mode, and press “close” to cancel the normally open function;

Cancel the human body induction door opening mode: After the door is closed in place, long press and hold the remote control to “close” for 10 seconds, and the human body induction door opening function will be disabled. Press “open” to release this mode;

Controller jumper cap description:

The control board has 2 jumper caps. Used to select the voltage of the magnetic lock and the type of door opening signal for access control. There are detailed text annotations on the board for each location that requires jumper wires.

12V/24V: Select the power supply voltage according to the specifications of the magnetic lock used.
Relay signal/voltage signal: Select based on the output signal of the access control. The relay signal is a digital signal. If the access control output is relay door opening, select relay door opening. The voltage signal is the access control output voltage of 5-24V.
