Product Introduction:

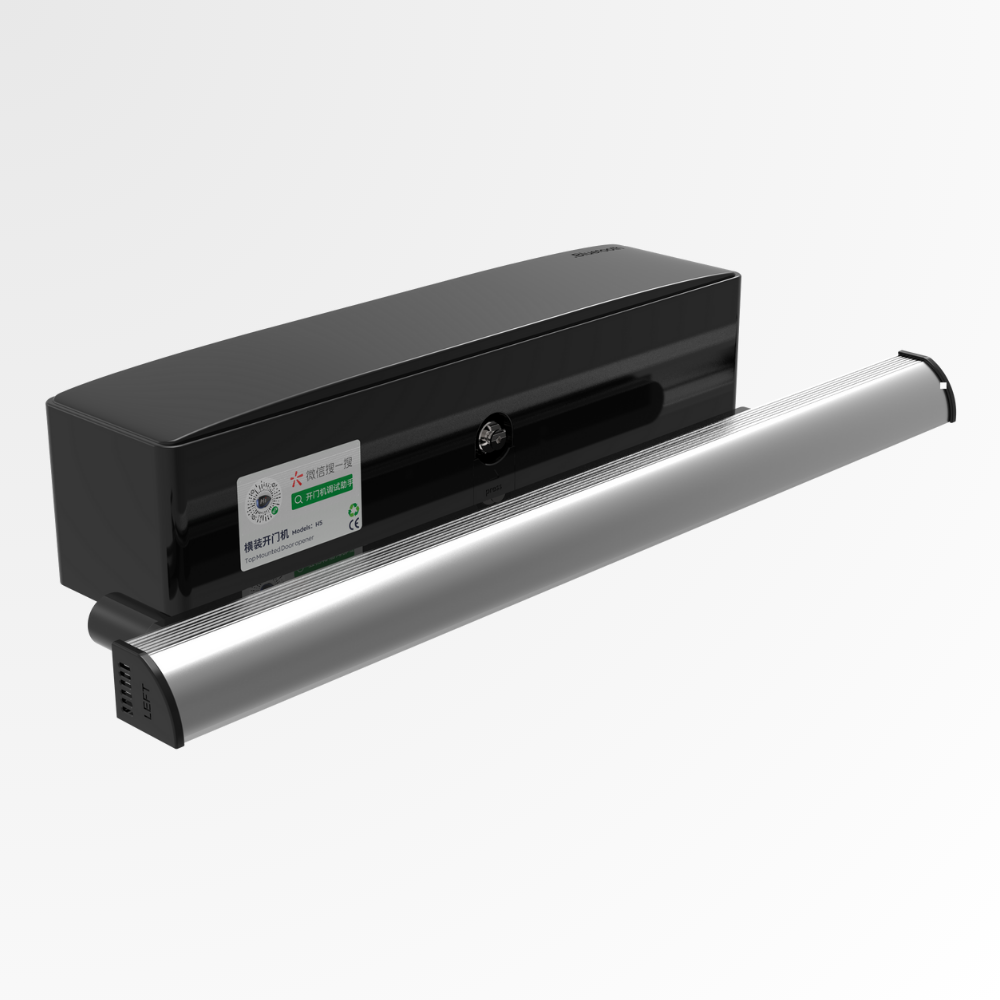

The BK-H5 horizontally mounted overhead door opener is a powerful and widely used automated access control solution. It perfectly solves the problem of ground space occupation through the method of “upward suspension and lateral traction”, while providing reliable driving force and safety, making it an ideal choice for various types of sliding doors. Commonly used in various types of indoor doors, fire doors, fire doors, wooden doors, iron doors, aluminum alloy doors, and other swing door products with beams or surrounding walls. It adopts an all aluminum body and is rust free for life; Alloy steel support arm+high-temperature spraying treatment technology, using high-speed DC brushless helical motor, perfectly combining silence and strength, more durable, multi-threaded controller control, making door opening and closing smoother in various scenarios; Comes with multiple interface functions, allowing various functions and auxiliary devices to be perfectly connected.

Product Features:
- Bluetooth debugging, easier to get started with;
- Unique zipper switch function, making the double door linkage more stable.
- Unique collision correction function to solve the problem of door collision position deviation.
- 360mm ultra short body, suitable for installation in more door sizes.
- Comes with an adapter base plate, suitable for various installation environments.
- The new slide rail is more securely and conveniently fixed, and the screws are not exposed, making it more aesthetically pleasing.
- EU CE certification, Rohs certification, CMA certification.
Product electrical parameters:
| Input voltage: 24V | Power supply: 30W; |
| Control interface: COM/NO dry contact | Remote control frequency: 430MHz; |
| Static power of the device: ≈ 1W; | Motor speed: 1800RPM; |
| Reduction ratio: 1:200 | Output torque: 80N · m; |
| Motor shaft diameter: φ 16mm | Motor type: DC brushless motor |
| Bluetooth specification: BLE low-power Bluetooth; | Electric lock port output current: 1.2A [supports 2 280KG magnetic locks]; |
| Working temperature: -35 ℃ -85 ℃; | Access control port output current: 0.8A [Face recognition device requires separate power supply]; |
| Operating humidity: 30% to 80% (no condensation); | Remote control distance: ≈ 15M [interference free state]; |
| Door opening and closing speed: adjustable from 3-6S; | Durability: 1 million times+; |
| Waterproof rating: IPX4, waterproof and splash proof; |
Product Specifications
Body size: 362 × 87 × 85mm;
Shell material: Alloy plastic
Slide length: 500mm;
Folding arm size: 250mm;
Sliding rod length: 240-340mm;
Slide arm: 330mm;
Outer packaging size: 535 × 185 × 125mm;
Total weight: 4.4kg
Accessories List:
| Door body of door opener: 1 set; | Arm bag: 1 set; |
| Screw package: 1 set; | Warranty card: 1 card; |
| Instruction manual: 1 copy; | Remote control: 2 pieces; |
Controller wiring and port definition diagram:

Process for adjusting door opening parameters:

Process for adjusting door closing parameters:

Controller screen information display instructions:
| content | meaning |
| IDLE | Motor not connected, or motor Hall fault, possible cause is loose wiring |
| STOP | The electric door is closed in place |
| CLOS | The electric door is closing |
| OPEN | The electric door is opening |
| HOLD | The electric door is fully open |
| LOCK | Electric door locked |
| FLET | Normally Open Mode |
Controller screen error code:
| error code | Reason for error |
| Err0 | When clearing the remote control and restoring factory settings, it is necessary to set the correct confirmation value. If the confirmation value is incorrect, an Err0 error will be prompted. |
| Err1 | retain. |
| Err2 | The warning of high brake recoil voltage can be solved by reducing the operating speed. |
| Err3 | Opening the door may cause blockage, possibly due to slow opening speed or slow closing speed. You can increase the speed of opening and closing the door. |
| Err4 | Closing the door may cause blockage, possibly due to insufficient closing speed or closing end speed. You can increase the closing speed or the closing end speed. |
| Err5 | Open door timeout, the reason is that the opening time exceeds P-49. Can increase the opening speed and closing speed of the door. |
| Err6 | Closing the door exceeded the time limit, as the closing time exceeded P-49. Can increase the closing speed and closing end speed. |
| Err7 | The motor type selection is incorrect, it can be changed to the correct type through P-22. |
Controller shortcut function:
After the door is fully opened, press and hold the remote control “stop” for 5 seconds to enter the normally open mode, and press “close” to cancel the normally open function;
Cancel the human body induction door opening mode: After the door is closed in place, long press and hold the remote control to “close” for 10 seconds, and the human body induction door opening function will be disabled. Press “open” to release this mode;
Controller jumper cap description:
The control board has 2 jumper caps. Used to select the voltage of the magnetic lock and the type of door opening signal for access control. There are detailed text annotations on the board for each location that requires jumper wires.
12V/24V: Select the power supply voltage according to the specifications of the magnetic lock used.
Relay signal/voltage signal: Select based on the output signal of the access control. The relay signal is a digital signal. If the access control output is relay door opening, select relay door opening. The voltage signal is the access control output voltage of 5-24V.
