Product Description:

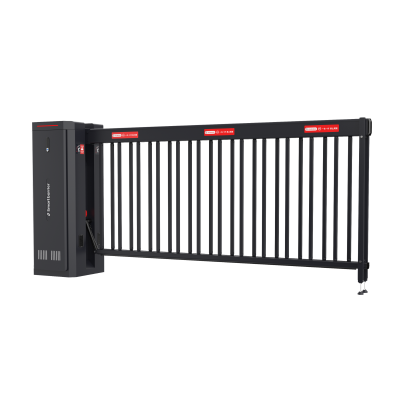

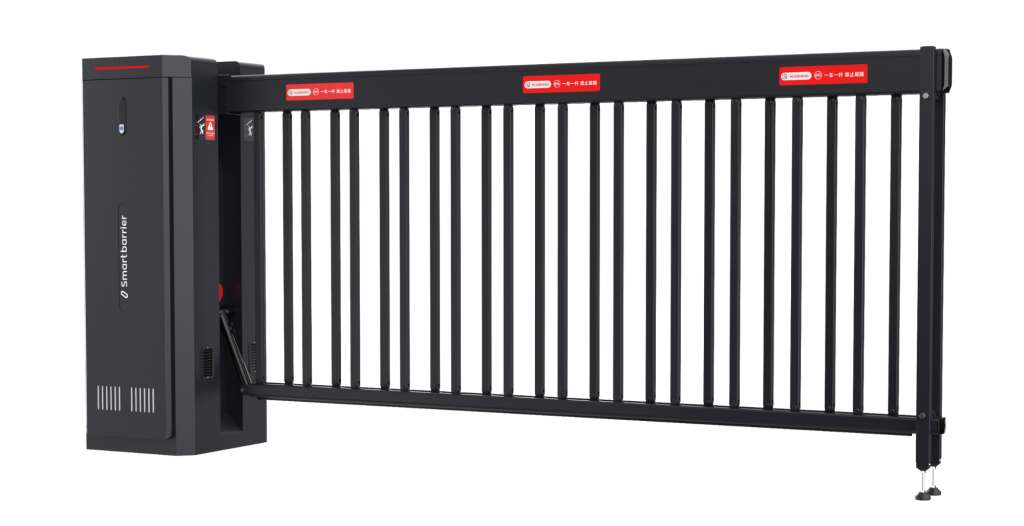

In order to solve the problem of installing ordinary fence barriers that cannot reach the height of human body crossing, the E4 mid mounted fence gate adopts a mid mounted installation method. The crossbeam structure adopts a double fence design, with a 135 × 80mm enlarged crossbeam design for better wind resistance and tensile strength. The motor adopts a 250W DC brushless motor with high speed reduction ratio and stronger force; The pole clamp adopts a continuous connection method to ensure the integrity of the packaging and ease of transportation. The shaft height reaches 1330mm, which is level with the small door crossbeam, making the installation more beautiful and elegant. It is widely used in prisons, governments, military, and windy environments.
Product Features:
- 250W motor, making the long pole run more smoothly;
- The height of the crossbeam from the ground is 1.4m, which matches the height of the pedestrian door, making the installation more aesthetically pleasing;
- Symmetrical design of the chassis, without left-right fixation, makes stocking and installation more convenient.
- 135mm × 80mm size crossbeam, with a maximum length of up to 6.5 meters;
- Exclusive bottom rod connector, solving the problem of wind resistance and overall shaking when lifting the rod;
- Bluetooth debugging, more convenient and efficient;
- Overall packaging, with no leakage of the rod clamp, convenient for shipping and storage;
- Symmetrical springs make the chassis more evenly stressed and durable.
Specification parameter table:
| Electrical parameters: | |
| Motor type: DC brushless motor | Rated power of motor: 250W |
| Motor speed: 3S | Motor reduction ratio: 1:150 |
| Motor voltage: 24V DC | Power supply: 360W |
| Static power of motor: 2W | Input voltage: 110V, 220V |
| Protection level: IP20 (GB4942.1) | Service life: ≥ 1 million cycles |
| Motor torque: 162N · M | Remote control frequency: 430mHZ |
| Traffic light voltage: 12V; | Working temperature: -35 ℃ -85 ℃; |
| Working humidity: 30% to 80% | Waterproof rating: IPX4 |
| Specifications: | |
| Product dimensions:1460mm×520mm×600mm | Product packaging size: 1500mm×630mm×650mm |
| Axis height: 1305mm | Gate type: Airborne pole |
| Product weight: ±115KG | Maximum pole length: 6.5M |
| Packing list: Accessories package: 2 remote controls; One door key; M15 × 150mm × 4 pieces; 1 set of rod clamps, 4 pressure plates | |

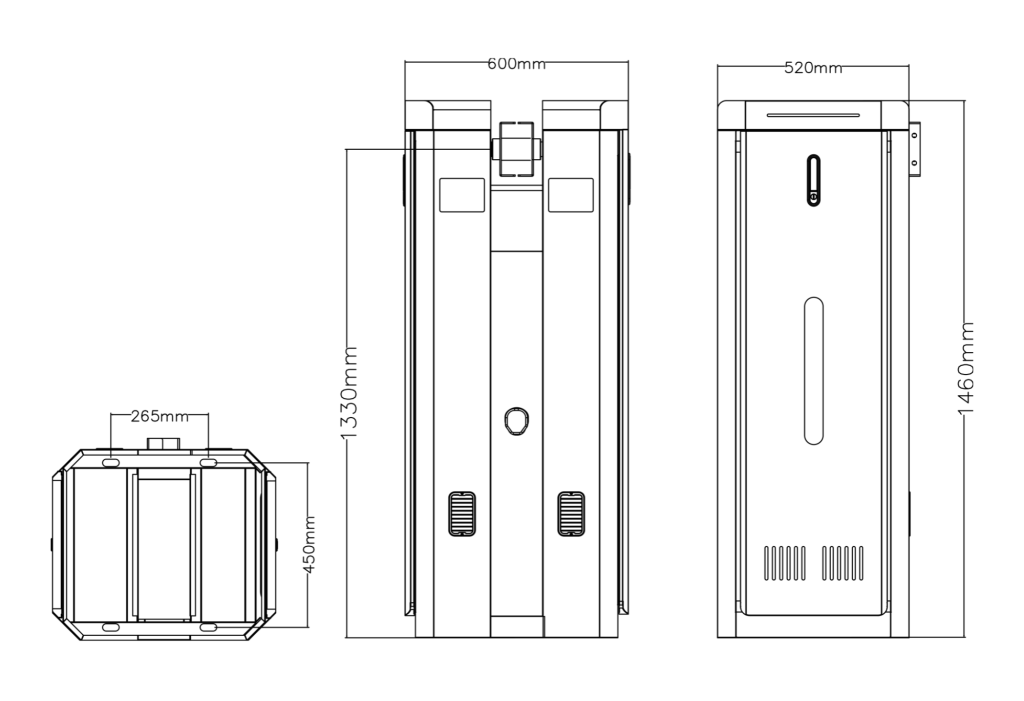

Product dimension drawing:
